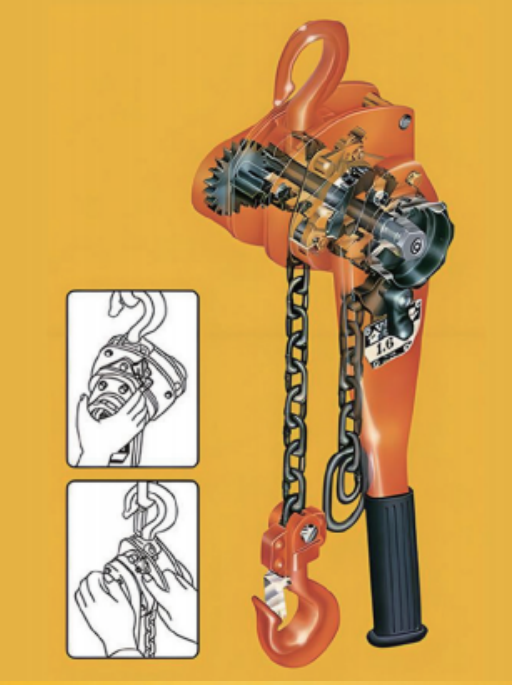

HSH-VL

HSH-VL

Compact and robust design with deep-drawn, stamped steel construction.
High-quality materials provide a lightweight structure without compromising reliability.
Low weight, compact mounting dimensions, and low lever force at full load.
Optimized gear ratio ensures smooth operation with minimal hand effort.
Premium-grade alloy load chain supplied as standard.
Drop-forged and professionally heat-treated hooks provide excellent strength and long service life.

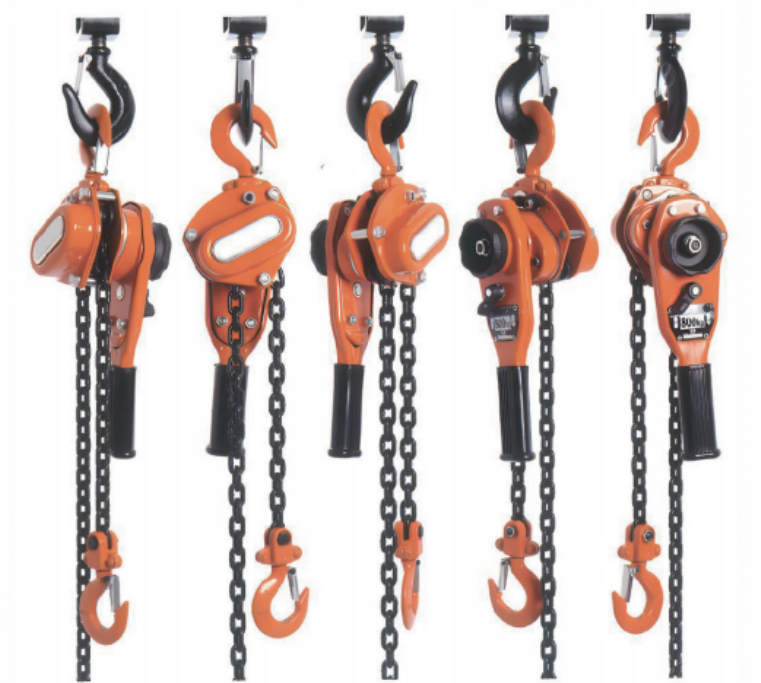

Available capacities range from 0.8 ton to 9 tons.
Different lifting heights are available upon request.

SKU: HSH-VL Category: LEVER BLOCK

Description

Model	VL0.8	VL1	VL1.6	VL2	VL3.2	VL6.3	VL9
Capacity (t)	0.8	1	1.6	2	3.2	6.3	9
Standard lift (m)	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Test load (t)	1	1.8	2	3	4.5	7.5	12
Min. distance between hooks (mm)	285	315	340	380	475	600	700
Lever pull to lift full load (N)	25	33	34	34	35	39	41
No. of load chain fall lines	1	1	1	1	2	2	3
Diameter of load chain (mm)	6	6	7.1	8	9	9	9
Net weight (kg)	7	7	11	15.5	20	28	47
Gross weight (kg)	9.4	9.4	14.5	17	23	32	50
Packing dimensions L × W × H (cm)	33 × 16 × 13	33 × 16 × 13	43 × 18 × 16	44 × 19 × 17	50 × 20 × 18	53 × 21 × 21	82 × 32 × 15
