semi-electric drum stacker

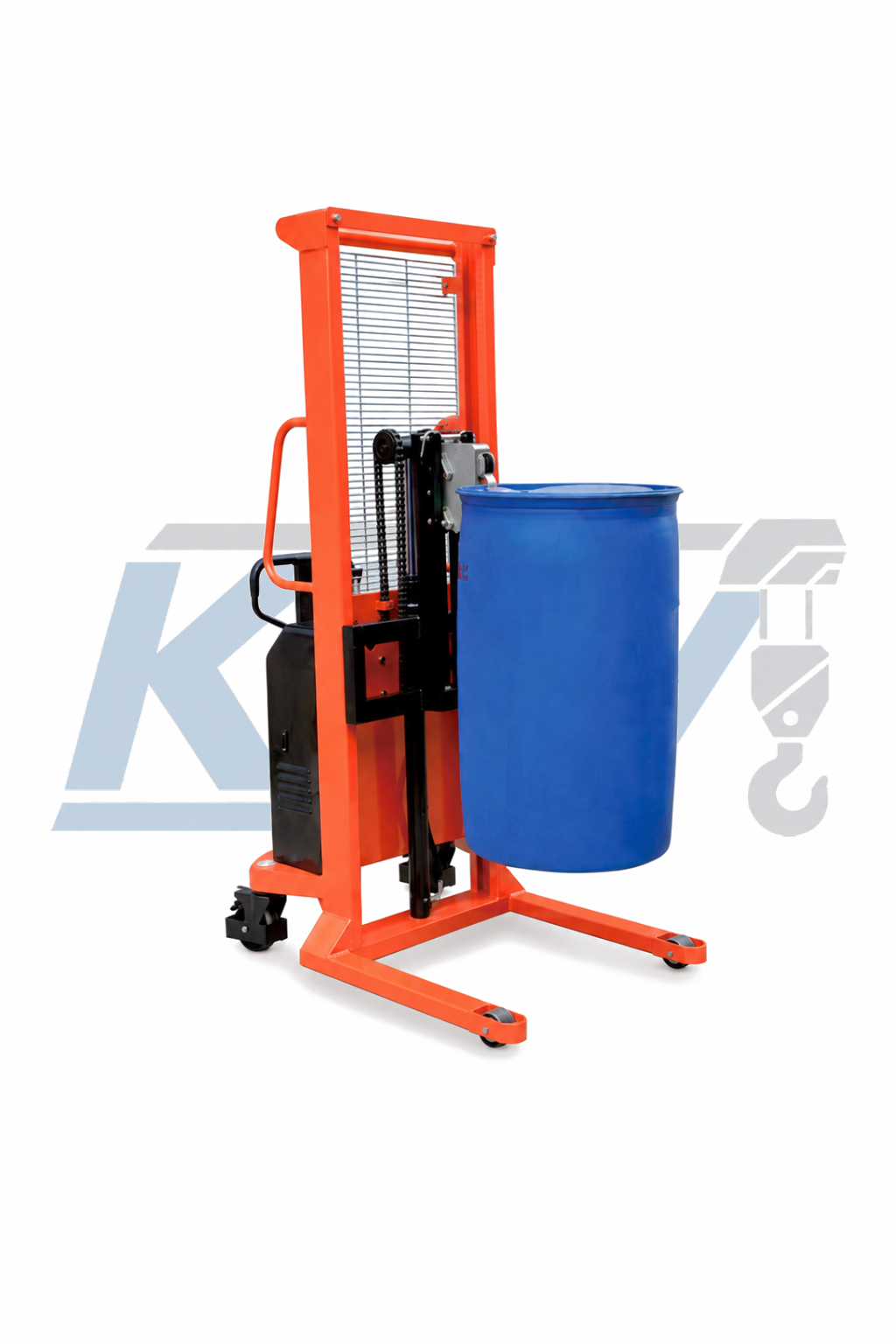

The DT500 Semi-Electric Drum Stacker is designed for lifting, transporting, and positioning upright steel or plastic drums. Electric lifting reduces operator effort, while manual travel provides flexible control in factories, warehouses, workshops, and logistics facilities.
- Rated load capacity: 500 kg.
- Eagle-grip structure allows fast and secure handling of upright drums and barrels.
- Heavy-duty C-shaped frame provides excellent stability and operational safety.
- Electric hydraulic lifting system improves handling efficiency and reduces manual effort.

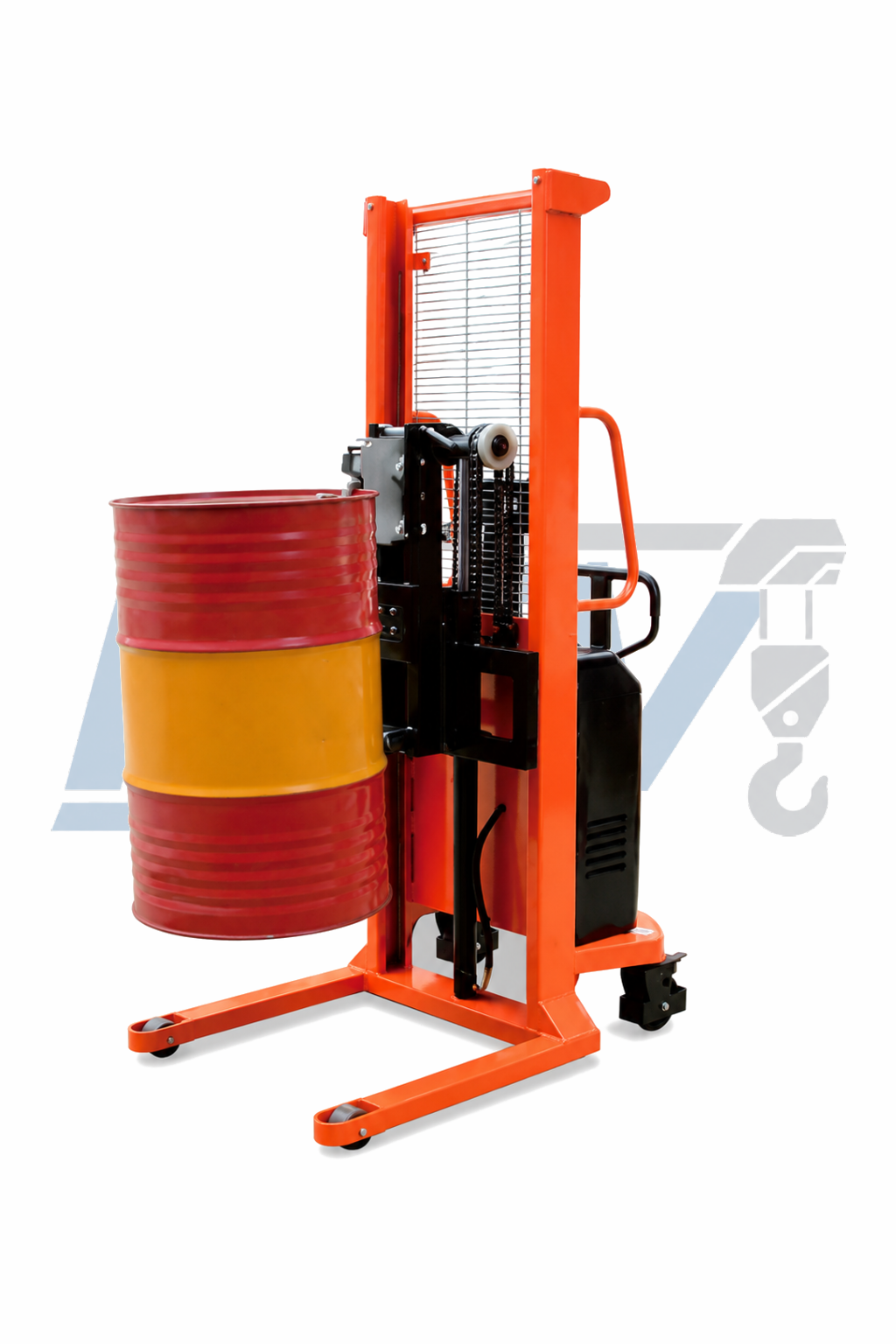

- DT500-1 is equipped with a weighing scale for simultaneous lifting and weighing.
- Different weighing configurations are available, with accuracy up to approximately ±3‰.
- Optional single-grip or double-grip drum attachments are available.
- Suitable for factories, warehouses, chemical plants, workshops, and drum-handling operations.
Description
DT500 Semi-Electric Drum Stacker Technical Specifications
| Product Parameter | Unit | DT500 | DT500-1 With Scale |
|---|---|---|---|
| Load Capacity | kg | 500 | 500 |
| Net Weight | kg | 226 | 254 |
| Wheel Dimensions Front / Rear |
mm | Ø80 × 55 / Ø150 × 50 | Ø80 × 55 / Ø150 × 50 |
| Front-Leg Width Inner / Outer |
mm | 630 / 810 | 630 / 810 |
| Turning Radius | mm | 1430 | 1450 |
| Hydraulic Pump Motor Power | kW | 1.6 | 1.6 |
| Battery | V / Ah | 12 V / 100 Ah | 12 V / 100 Ah |
| Maximum Lifting Height | mm | 1450 | 1450 |
| Lifting Speed | mm/s | 120 | 120 |
| Weighing Scale | — | Not Included | Included |
| Scale Accuracy | — | — | Up to ±3‰ |
Optional single-grip and double-grip drum attachments are available upon request.

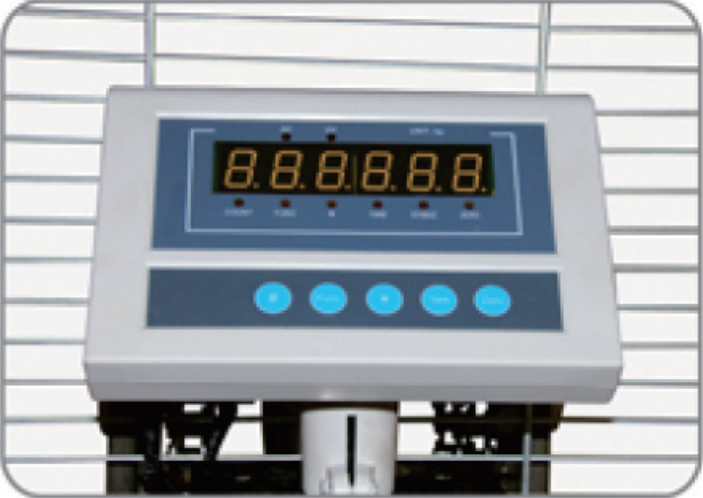

Optional Weighing Scale
DT500-1 weighing display for simultaneous drum lifting and weight measurement.
