HSZ
- Chinese round model chain block.
- Low operating effort to lift the maximum rated load.
- Premium-grade alloy load chain and zinc-plated hand chain supplied as standard.
- Drop-forged and professionally heat-treated hooks provide outstanding strength and long service life.
- Available capacities range from 0.5 ton to 20 tons, with optional heavy-duty 30-ton and 50-ton models.
Description
Technical Specifications
| Model | HSZ-½ | HSZ-1 | HSZ-1½ | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-10 |
|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Standard Lift (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 |
| Test Load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 |
| Min. Distance Between Hooks (mm) | 240 | 275 | 340 | 380 | 475 | 600 | 700 |
| Chain Pull to Lift Full Load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
| No. of Load Chain Fall Lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 |
| Diameter of Load Chain (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 |
| Net Weight (kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
| Gross Weight (kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 |
| Packing Dimensions L × W × H (cm) | 28×21×17 | 30×24×18 | 34×29×20 | 33×25×19 | 38×30×20 | 45×35×24 | 62×50×28 |

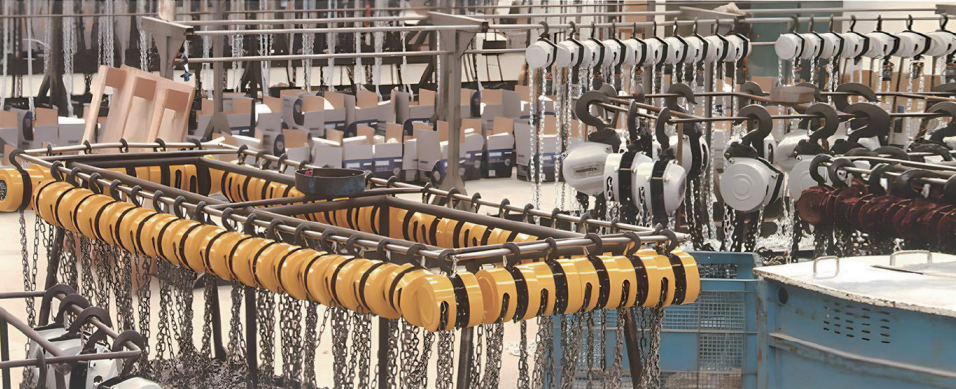

HSZ Series Chain Block
| Specifications | 3M | 5M | 6M | Price per Meter |
|---|---|---|---|---|
| 0.5t | 13.5 / 12.3 | 16 / 14.7 | 17.3 / 15.9 | 1.3 / 1.2 |
| 1t | 13.5 / 12.3 | 16 / 14.7 | 17.3 / 15.9 | 1.3 / 1.2 |
| 1.5t | 16.6 / 15.3 | 20.6 / 18.3 | 22.6 / 19.8 | 2 / 1.5 |
| 2t | 16.6 / 15.3 | 20.6 / 18.3 | 22.6 / 19.8 | 2 / 1.5 |
| 3t | 26 / 23 | 32 / 28 | 35 / 30.5 | 3 / 2.5 |
| 5t | 38 / 35.2 | 46 / 42.2 | 50 / 45.7 | 4 / 3.5 |
| 10t | 85 | 101 | 109 | 8 |
| 20t | 210 | 242 | 258 | 16 |

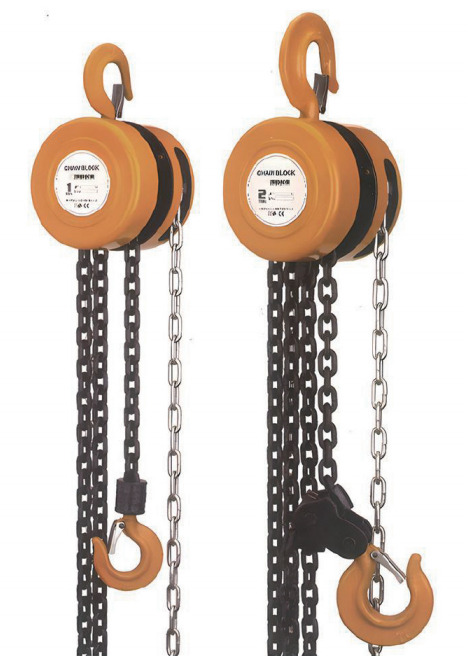

Product Details
